Razer device configuration tool

This is the next generation Razer device configuration tool bringing the Razer gaming experience to the free OpenSource world.

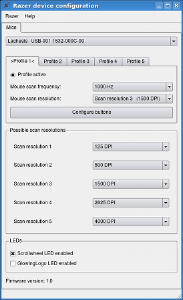

Image preview of qrazercfg.png

The tool architecture is based on "razerd", which is a background daemon doing all of the lowlevel privileged hardware accesses. The user interface tools are "razercfg", a commandline tool; and "qrazercfg", a Qt based graphical device configuration tool (see screenshot below).

Device name Support status USB ID
Razer Boomslang CE mouse Stable, but missing minor features. 1532:0005
Razer Copperhead mouse Stable, but missing minor features. 1532:0101
Razer DeathAdder Classic mouse Stable 1532:0007
Razer DeathAdder 3500 DPI mouse Stable 1532:0016
Razer DeathAdder Black Edition mouse Stable 1532:0029
Razer DeathAdder 2013 mouse Stable 1532:0037
Razer DeathAdder Korea PCBang edition mouse Stable 1532:0038
Razer DeathAdder Chroma mouse Stable 1532:0043
Razer Diamondback Chroma mouse Stable 1532:004C
Razer Imperator Classic and 2012 mice Driver exists, but is currently broken 1532:0017
Razer Krait mouse Stable 1532:0003
Razer Lachesis Classic mouse Stable, but missing minor features. 1532:000C
Razer Lachesis 5600 DPI mouse Driver exists, but is currently broken 1532:001E
Razer Mamba (tournament edition) mouse Stable 1532:0046
Razer Naga Classic mouse Stable 1532:0015
Razer Naga Epic mouse Stable 1532:001F
Razer Naga 2012 mouse Stable 1532:002E
Razer Naga 2014 mouse Stable 1532:0040
Razer Naga Hex (v1) mouse Stable 1532:0036
Razer Naga Hex 2014 mouse Stable 1532:0041
Razer Taipan mouse Stable 1532:0034
Any other wired, wireless or hybrid wired/wireless Razer mouse not listed here Currently unsupported

Razercfg does only offer options for features supported by the actual hardware of the mouse. So if the hardware does not support button remapping for example, razercfg will not offer button options, even if the windows driver does. Button remapping on these devices has to be done by xmodmap, xinput or other X11 tools. One exception is profiles, though. If the mouse does not support profiles in hardware, razercfg will emulate 20 profiles in software.

Device name Supported features
Razer Boomslang CE mouse hP, B*, F, D, L
Razer Copperhead mouse hP, B*, F, D, L
Razer DeathAdder Classic mouse eP, F, D, L
Razer DeathAdder 3500 DPI mouse eP, F, D, L
Razer DeathAdder Black Edition mouse eP, F, D
Razer DeathAdder 2013 mouse eP, F, D, L
Razer DeathAdder Korea PCBang edition mouse eP, F, D, L
Razer DeathAdder Chroma mouse eP, F, D, L
Razer Diamondback Chroma mouse eP, F, D, L
Razer Imperator Classic and 2012 mice hP, B*, F, D, L
Razer Krait mouse eP, D
Razer Lachesis Classic mouse hP, B*, F, D, L
Razer Lachesis 5600 DPI mouse hP, B*, F, D, L
Razer Mamba (tournament edition) mouse eP, F, D, L
Razer Naga Classic mouse (wired) eP, F, D, L
Razer Naga Epic mouse eP, F, D, L
Razer Naga 2012 mouse eP, F, D, L
Razer Naga 2014 mouse eP, F, D, L
Razer Naga Hex (v1) mouse eP, F, D, L
Razer Naga Hex 2014 mouse eP, F, D, L
Razer Taipan mouse eP, F, D, L
eP = Emulated profiles
hP = Hardware profiles
F = Frequency switching
B = Button remapping
D = DPI switching
L = LEDs switching
* = Not fully supported

The following prerequisites are required to start working on a driver for a new device.
You need

If you lack one of these prerequisites, please try to get all of them before contacting me.

Modern mice most likely implement the "Synapse 2.0" wire protocol or (even more likely) a derivative thereof. That protocol is implemented in librazer/synapse.c. Drivers for mice with synapse protocol are supposed to use that generic code and tell it with feature-flags (enum razer_synapse_features) about slight variations in the wire protocol. See the hw_imperator.c and hw_lachesis5k6.c drivers for examples. New mice most likely require adding more feature flags and modifications to the generic synapse code.

Older devices or device families like the Deathadder for example use their own protocol that differs a lot from Synapse. See the implementations of the individual devices for more information.

Synapse 2.0 Framework is the name of the new Windows driver for Razer devices.
It basically is a one-supports-all solution. One driver for many devices. That's great.
However, what's not to great is the required internet connection, online registration and cloud connection. You guys at Razer, are you serious? A device driver with forced registration and cloud connection? This is ridiculous.
I am not going to play this game. I won't buy any new Razer product that requires an online registration or any sort of internet connection to run the device driver. That also means that I will not work on razercfg support for these devices.

The development source code of razercfg can be downloaded using the Git version control system as follows:

git clone https://git.bues.ch/git/razer.git

To browse the Git repository online, go to the repository web interface.
Or download the compressed snapshot.
A mirror of the repository is available on GitHub, GitLab, Bitbucket and on NotABug.org.
If you want to contribute to razercfg, please read the contribution guidelines first.

For information on how to install razercfg see the README.md file that is shipped with razercfg.

Razercfg is stable/production quality software.
That means its features are well tested and the remaining amount of bugs probably is minor. The documentation is not complete.

If you find any bugs in razercfg or if you have any suggestion for new features, we would like to hear from you.
Your help is greatly appreciated and will help to create better software and improve the overall experience for everybody. So don't hesitate to report anything that that limits your razercfg usage.

If you have got any code improvements or other improvements that should be merged into the project, please send such enhancements to the razercfg maintainer.

Please read the contribution guidelines first.

Copyright (C) Michael Büsch et al.
Licensed under the terms of the GNU General Public License version 2 or (at your option) any later version. See the sourcecode for details.
